Chicago’s industrial buildings carry decades of history. Many were built long before anyone kept digital records. When it’s time to upgrade one of these facilities, old blueprints rarely tell the full story. An as-built survey fills that gap. It shows what’s really there, not what was planned decades ago.
For developers planning a facility upgrade, this step isn’t optional. It’s the foundation everything else gets built on.
Chicago’s Industrial Corridors Are Older Than Their Permits
Walk through Pilsen, McKinley Park, or the old stockyards districts. You’ll find factories and warehouses that have stood for generations. Many were expanded, modified, or repaired long before anyone scanned a permit into a computer.
The paper trail on these buildings is often incomplete. Additions get built without updated drawings. Equipment gets swapped out. Walls come down and go back up in slightly different places.
If a facility upgrade plan relies only on the original blueprints, it’s working with outdated information. An as-built survey checks the building as it stands today. It becomes the baseline of truth before engineers design anything new.
This matters more in Chicago than in newer cities. Older industrial stock means more gaps between what’s on paper and what’s on the ground.
What an As-Built Survey Actually Verifies on an Industrial Site
An as-built survey does more than confirm walls are where they should be. On an industrial site, the details matter a lot more than that.
Here’s what surveyors typically check:
- Slab elevations. Heavy equipment needs a level, accurately measured floor. Even small elevation changes affect how machinery sits and operates.
- Column grid spacing. Crane systems and overhead equipment depend on exact column placement. A few inches off can mean a crane can’t clear its path.
- Ceiling heights. Adding a conveyor line or a mezzanine requires knowing the real clearance, not the clearance from a 1970s drawing.
- Utility stub-outs. Water, gas, and electrical connections that were added over the years often aren’t documented anywhere official.
Each of these details feeds directly into a facility upgrade plan. Miss one, and the design team is working with numbers that don’t match reality.
The Cost of Skipping One: Retrofit Change Orders and Downtime
Here’s the part that gets overlooked. The real cost of skipping an as-built survey isn’t the survey fee. It’s what happens after construction starts.
Picture a retrofit already underway. Contractors are on site. Equipment has been ordered. Then someone discovers a column is two feet off from where the drawings say it should be. Or a slab doesn’t sit at the elevation the design assumed.
Now the project stops. A change order gets written. Engineers revise the design. Contractors wait. If the facility is still operating during the upgrade, a production line might need to pause too.
Every day of that delay costs money. Idle crews, stalled equipment deliveries, and paused production add up fast. An as-built survey costs a fraction of what one mid-project change order can cost. It’s cheaper to know the facts up front than to discover them halfway through construction.
Matching As-Built Data to Chicago Building Code and Zoning Overlays
Chicago has its own layer of complexity for industrial developers. Many industrial parcels sit inside Planned Manufacturing Districts, known as PMDs, or other M-zoned areas. These zones come with specific rules about setbacks, expansions, and allowed uses.
Before a facility upgrade gets permitted, the city needs to see that current conditions match what’s on file, or get a clear explanation of where they differ. An as-built survey provides that proof.
Without accurate as-built data, a permit application can stall. Reviewers may ask questions the developer can’t answer without new field measurements. That means delays before construction even begins.
Getting the as-built survey done early keeps the permitting process moving. It gives the project team documentation the city can actually use.
Coordinating As-Built Surveys With MEP and Structural Engineers Before Design Starts
An as-built survey isn’t useful sitting in a folder. It needs to reach the design team early, and in a format they can use.

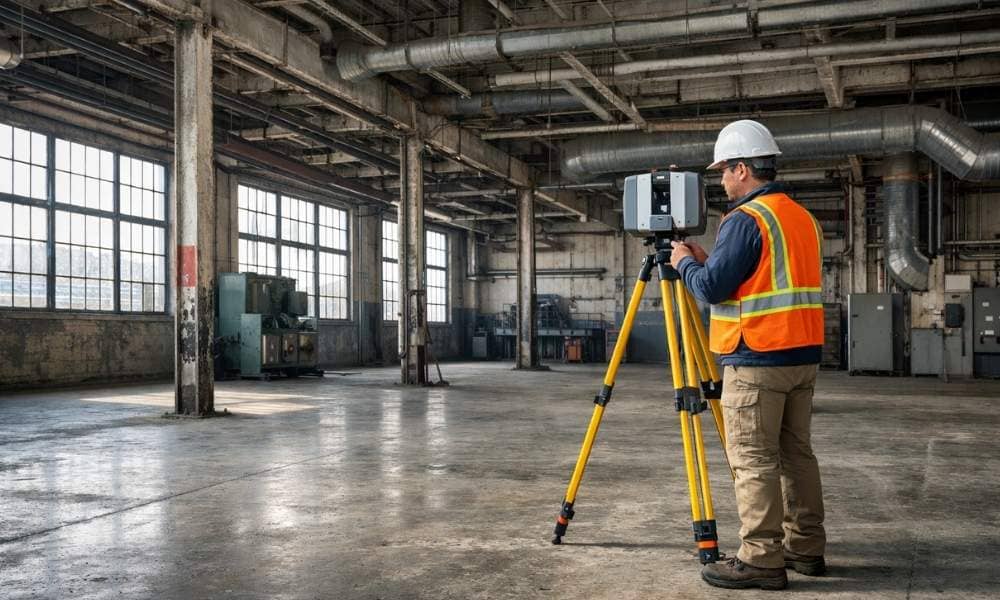

Surveyors typically hand off data in one of a few ways: a point cloud from laser scanning, a CAD file with dimensions, or a marked-up PDF for smaller projects. Structural and MEP engineers use this data to build their designs around real conditions, not assumptions.
The timing matters as much as the data itself. If the survey lands after engineering has already started, the design team may need to rework drawings once the real numbers come in. That means wasted hours and a slower schedule.
The better approach is simple. Order the as-built survey before design work begins. Share the data directly with the structural and MEP teams. Let them build the plan around accurate information from day one.
Get the Survey Done Before Design Starts, Not After
Facility upgrades move faster and cost less when they start with facts, not assumptions. For industrial properties across Chicago, many with decades of undocumented changes, an as-built survey is the step that keeps everything else on track. It protects the schedule, the budget, and the permit timeline all at once.
